Karlheinz Stockhausen
Instrumentation Works for Orchestra
LUCIFER'S DANCE
Instrumentation for wind orchestra (symphony band) or symphony orchestra
LUCIFER'S DANCE can be performed by a wind or symphony orchestra.
The same score is used for both alternatives. Special instructions in the score, notated in , mark the version for symphony orchestra.
There are separate sets of orchestra parts for the two versions.
Instrumentation for wind orchestra
Soloists
1 bass (or trombone or euphonium), amplified by transmitter
(Staged performances are always with bass voice.)
1 piccolo trumpet in B-flat, amplified by transmitter
1 piccolo flute, amplified by transmitter
Wind Orchestra (ca. 80 musicians), ( ) = ossia
Gruppe | Part | ||
1 | 1 A | 1 percussionist | |
1 | 1 B | 3 (4) flutes | |
1 | 1 C | 3 (4) flutes (ossia alto flutes) | |
1 | 1 D | 3 basset-horns (ossia E-flat alto clarinets) | |
2 | 2 A | 1 percussionist | |
2 | 2 B | 3 clarinets | |
2 | 2 C | 3 clarinets | |
2 | 2 D | 3 bass clarinets | |
3 | 3 A | 1 percussionist | |
3 | 3 B | 2 soprano saxophones (possibly sopraninos for high F) | |
3 | 3 C | 2 alto saxophones | |
3 | 3 D | 1 tenor saxophone | |
3 | 3 E | 1 baritone saxophone | |
3 | 3 F | 1 bass saxophone (ossia contrabass clarinet or tuba) | |
4 | 4 A | 1 percussionist | |
4 | 4 B | 2 (4) oboes | |
4 | 4 C | 2 (4) English horns | |
4 | 4 D | 2 (4) bassoons | |
4 | 4 E | 1 (2) contrabassoon(s) (ossia contrabass clar. or tuba) | |
5 | 5 A | 1 percussionist | |
5 | 5 B | 3 trumpets | mutes H W M Spitz C (see Notation) |
5 | 5 C | 3 trumpets | |
5 | 5 D | 3 trombones (3rd possibly bass trombone) |
|
6 | 6 A | 1 percussionist | |
6 | 6 B | 3 trumpets | mutes H W Spitz F C (see Notation) |
6 | 6 C | 3 trumpets | |
6 | 6 D | 3 trombones (3rd possibly bass trombone) |
|
7 | 7 | 1 percussionist | |
8 | 8 A | 1 percussionist | |
8 | 8 B | 2 horns I 1-2 | |
8 | 8 C | 2 horns I 3-4 | |
8 | 8 D | 2 horns II 1-2 | |
8 | 8 E | 2 horns II 3-4 | |
9 | 9 A | 1 percussionist | |
9 | 9 B | 2 euphoniums I | |
9 | 9 C | 2 euphoniums II | |
10 | 10 A | 1 percussionist | |
10 | 10 B | 2 alto trombones (ossia flugelhorns) | |
10 | 10 C | 2 baritones (American) = tenor horns (German) | |
10 | 10 D | 4 bass tubas |
See the Seating plan for concert performances with wind orchestra.
Depending on the instrumentation of the wind orchestra (symphony band), all instrumental groups except the percussion may be enlarged or reduced proportionately for concert performances.
Groups 1 (possibly also 2 ) and 4 should be amplified with, for
example,
3 (+3) + 4 microphones, so that they sound as loud as the
others.
The prescribed movements for each group must be synchronous and as
large as possible. All musicians should sit facing the public, so that the
polyrhythm of the movements is clearly visible.
When ordering the performance material for wind orchestra, the instrumentation and number of parts required should be specified. There are special parts available for alto flutes (1 C); for E-flat alto clarinets instead of basset-horns (1 D); for contrabass clarinet or tuba instead of bass saxophone (3 F); for the contrabass clarinet instead of
contra bassoon (4 E); for flugelhorns instead of alto trombones (10 B).
Instrumentation for symphony orchestra (only for concert performances)
Soloists
1 bass (or trombone or euphonium), amplified by transmitter
1 piccolo trumpet in B-flat, amplified by transmitter
1 piccolo flute, amplified by transmitter
Symphony Orchestra (ca. 59 musicians), ( ) = ossia
Group | Part | ||||||
1 | 1 A | 1 percussionist | |||||
1 | 1 B | 2 (3) flutes | 4 (6) flutists 4(5) clarinets |
||||
1 | 1 C | 2 (3) flutes (ossia alto flutes) | |||||
1 | 1 D | 1 basset-horn | |||||
2 | 2 A | 1 percussionist | |||||
2 | 2 B | 1 clarinet | |||||
2 | 2 C | 1 (2) clarinet(s) | |||||
2 | 2 D | 1 bass clarinet | |||||
3 | 3 A | 1 percussionist | |||||
3 | 3 B | 6 violins | |||||
3 | 3 C | 4 violas | |||||
3 | 3 D | 2 violoncelli I | |||||
3 | 3 E | 2 violoncelli II | |||||
3 | 3 F | 2 double-basses | |||||
4 | 4 A | 1 percussionist | |||||
4 | 4 B | 2 oboes | 4 oboists 3 (4) bassoonists |
||||
4 | 4 C | 2 English horns | |||||
4 | 4 D | 2 bassoons | |||||
4 | 4 E | 1 (2) contrabassoon(s) | |||||
5 | 5 A | 1 percussionist | |||||
5 | 5 B | 2 trumpets | mutes as in wind orchestra |
5 trumpeters |
|||
5 | 5 C | 1 trumpet | |||||
5 | 5 D | 2 trombones | 4 trombonists |
||||
6 | 6 A | 1 percussionist | |||||
6 | 6 B | 1 trumpet | mutes as in wind orchestra |
||||
6 | 6 C | 1 trumpet | |||||
6 | 6 D | 2 trombones | |||||
7 | 7 | 1 percussionist | |||||
8 | 8 A | 1 percussionist | |||||
8 | 8 B | 1 horn I 1 | 4 horn players |
||||
8 | 8 C | 1 horn I 2 | |||||
8 | 8 D | 1 horn II 1 | |||||
8 | 8 E | 1 horn II 2 | |||||
9 | 9 A | 1 percussionist | |||||
9 | 9 B | euphonium I | (ossia synthesizer) |
||||
9 | 9 C | 1 euphonium II | |||||
10 | 10 A | 1 percussionist | |||||
10 | 10 B/C | 1 synthesizer (plays the alto trombone and baritone parts) |
|||||
10 | 10 D | 2 bass tubas (possibly played by synthesizer 10 B/C) |
See the Seating plan for symphony orchestra
All musicians — including the strings - should sit facing into the hall
(and not turned 90°).
A symphony orchestra may omit the prescribed movements.
With the exception of the 7th percussion part, the percussion parts are
quite easy and can be played by percussion students or by non-percussionists (for instance string players).
When ordering the orchestra parts for a performance with symphony
orchestra, the instrumentation and number of parts required should be
specified.
There is a special part available for synthesizer 9 B/C instead of 2 euphoniums.
Synthesizer 10 B /C can also take over the parts of the bass tubas
(10 D) (already included in part 10 B/C).
Percussion
Each of the 10 percussionists has 1 antique cymbal:
beater with heavy round plastic head
Percussionist 1 | ||
1 | keisu (kettle bell) (also called Dobaći or Ching- Tsching) with special beater ca. 40 cm |
|
Percussionist 2 | ||
1 | glockenspiel | |
Percussionist 3 | ||
2 | alarm bells (tocsins) (cast bronze bells) ca. 23 27,5 cm weight ca.6 10 kg with original clapper, played from the inside |
|
Percussionist 4 | ||
3 | rin (Japanese temple instrument: brass-coloured metal cups on coloured cushions) ca.12,5 13,5 15,5 cm wooden beater and sometimes heavier beaters with round plastic heads |
|
Percussionist 5 | ||
2 | tubular bells | |
Percussionist 6 | ||
2 | Javanese gongs (also called Khwang-Wong or Thai Gamelon: gold-coloured bronze bossed gongs, hung) |
|
Percussionist 7 (soloistic) | ||
1 | high-hat notation |
|
= strike open high-hat and let sound | ||
= simultaneously strike with stick and briefly depress foot pedal, let sound | ||
= strike with stick and depress pedal, then roll while gradually releasing the high-hat with the pedal | ||
2 | cymbals main pitches | |
2 | Thai gongs (nipple or bossed gongs) | |
1 | Chinese opera gong "fu-in luo" Every beat produces a glissando which ends on d : |
|
1 | plate bell (bronze) or sound plate (duraluminium) |
|
1 | snare drum, with snare on | |
Tuning when struck near the rim: | ||
The pitches within the tritone C-F are approximate: F The C should be exact, and the range interval depends on the instrument. |
||
The snare drum should be muted to such an extent that it no longer dominates. | ||
1 | tom-tom | |
1 | bass drum with pedal | |
= rim shot on snare drum and tom-tom | ||
= let sound | ||
= immediately after the stroke, hold beater straight up, high above the head, and stay in this position until the next stroke: depending on the instrument struck, right or left or both beaters. |
For the solo starting at bar 613 and its recurrence, beaters must be chosen which sound as good for the gongs and sound plate as for the drums (possibly beaters with different types of head on the two ends).
Percussionist 8 | ||
1 | vibraphone bar (mounted on a resonator box) | |
2 | cinelli (also called Ching-ba: heavy small cymbal "from Peking" ) 17 cm 18,5 cm played with glockenspiel beaters |
|
Percussionist 9 | ||
1 | antique cymbal ("crotal") (special cast for the low pitch, mounted on a resonator box) |
|
2 | tam-tams Chau-Luo (cast bronze) with Sato tam-tam beaters 70 cm 90 cm and tubular bell hammer with leather |
|
Percussionist 10 | ||
1 | bowl bell (cast bronze) (bronze support on bottom, stands on small woooden table) ca. 35 cm keisu beater, or similar |
|
1 | tam-tam Chau-Luo (cast bronze) with Sato tam-tam beater ca. 80 cm and tubular bell hammer |
These pitches should be based on A = 442 Hz.
Every percussion instrument must be muted at the end of a notated
duration (even grace notes) unless a (resonance marking) or
"klingen lassen" ("let sound") is explicitly notated.

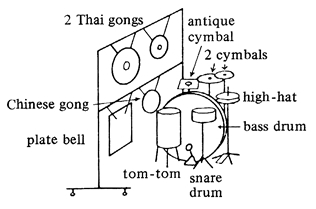

Set-Up for Percussionist 7
(as seen by the player)
This set-up may also be reversed.
All instruments of percussionist 7 should sound equally loud, therefore:
mute the snare drum and play it softer; use a relatively thick stick for the
side where the tom-tom, gong and sound plate are located, and wrap
linen tape around its middle (for striking gong and sound plate);
generally strike the high-hat and gong harder.
The high-hat must be larger than usual.
The point at which the gong is struck should be constantly varied.
The rim shots on the tom-tom should be varied in timbre by varying the
distance between the hand and hitting point of the stick (for instance for
, reduce distance). They should sound more like wood than skin.
It is possible for the unusual percussion instruments for LUCIFER'S DANCE to be loaned from the Stockhausen-Verlag.
